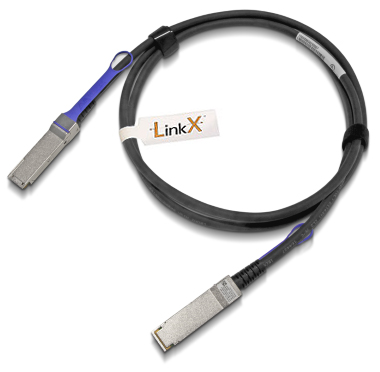

LinkX? InfiniBand Direct Attach Copper (DAC) Cables | ||||||
InfiniBand | 速度 | Form Factor | 產品簡介 | Special Features | Part Number | Length (Meters) |
HDR | 200Gb/s | QSFP56 | 下載 | LSZH | MCP1650-H | ?, 1, 1.5, 2 |
EDR | 100Gb/s | QSFP28 | 下載 | LSZH | MCP1600-E | ?, 1, 1.5, 2, |
FDR | 56Gb/s | QSFP+ | 下載 | VPI, PVC | MC2207130 | ?, 1, 1.5, 2 |
VPI, PVC | MC2207128 | 2.5, 3 | ||||
VPI, PVC | MC2207126 | 4 | ||||
FDR10 QDR | 40Gb/s | QSFP+ | 下載 | PVC | MC2206130 | ?, 1, 2, 3 |
PVC | MC2206128 | 4, 5 | ||||
QDR | 40Gb/s | QSFP+ | 下載 | PVC | MC2206126 | 6, 7 |
MC2206125 | 7 | |||||

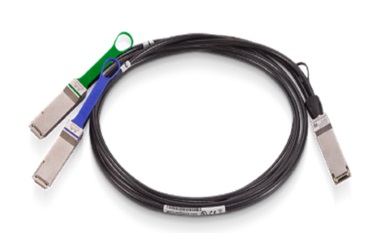

LinkX? Infiniband Direct Attach Copper Splitter | ||||||
InfiniBand | 速度 | Form Factor | 產品簡介 | Special Features | Part Number | Length (Meters) |
HDR-to-Dual HDR100 | 200G - 2x100G | QSFP56 | 下載
| LSZH Splitter | MCP7H50-H | 1, 1.5, 2 |
LinkX? InfiniBand Active Optical Cables (AOCs) | ||||||
InfiniBand | 速度 | Form Factor | 產品簡介 | Special Features | Part Number | Length (Meters) |
HDR | 200Gb/s | QSFP56 | 下載 | LSZH | MFS1S00-H | 3, 5, 10, 15, |
EDR | 100Gb/s | QSFP28 | 下載 | LSZH | MFA1A00-E | 3, 5, 10, 15, |
FDR | 56Gb/s | QSFP+ | 下載 | VPI, OFNP | MC220731V | 3, 5, 10, 15, 20, |
下載 | VPI, OFNP | MC2207312 | 200, 300 | |||
FDR10, QDR | 40Gb/s | QSFP+ | 下載 | OFNP | MC2206310 | 3, 5, 10, 15, |
LinkX? InfiniBand Active Optical Cables (AOCs) | ||||||
InfiniBand | 速度 | Form Factor | 產品簡介 | Special Features | Part Number | Length (Meters) |
HDR H-cable | 2x200Gb/s to 2x200Gb/s | 2xQSFP56 to 2xQSFP56 | 下載 | LSZH | MFS1S90-H | 3, 5, 10, |
HDR100 Splitter | 200Gb/s to 2x100Gb/s | QSFP56 to 2xQSFP56 | 下載 | LSZH | MFS1S50-H | 3, 5, 10, 15, 20, 30 |
LinkX? InfiniBand Optical Transceivers | ||||||||
InfiniBand | 速度 | Form Factor | 產品簡介 | Connector | Special Feature | Max Reach | Wavelength | Part Number |
HDR | 200Gb/s | QSDP56 | 下載 | MPO | - | 100m | 850nm | MMA1T00-HS |
EDR | 100Gb/s | QSFP28 | 下載 | MPO | - | 100m | 850nm | MMA1B00-E100 |
EDR/PSM4 | 100Gb/s | QSFP28 | 下載 | MPO/APC | - | 500m | 1310nm | MMS1C10-CM |
EDR/CWDM4 | 100Gb/s | QSFP28 | 下載 | LC | - | 2km | 1310nm | MMA1L30-CM |
EDR/LR4 | 100Gb/s | QSFP28 | 下載 | LC | - | 10km | 1310nm | MMA1L10-CR |
FDR | 56Gb/s | QSFP+ | 下載 | MPO | - | 30m | 850nm | MC2207411-SR4L |
FDR10 | 40Gb/s | QSFP+ | 下載 | MPO | VPI | 100m | 850nm | MC2210411-SR4 |
LC | VPI | 10km | 1310nm | MC2210511-LR4 | ||||
FDR10, QDR | 40Gb/s | QSFP+ | 下載 | MPO | VPI | 300m | 850nm | MC2210411-SR4E |
